Dimensity 6300 Flagship chipset Latest Android 14 OS -
High-End 120Hz 2k Display Ultra-Clear Visual Experience -
Outdoor Quad-Camera System -
The First-Ever 20000mAh Beast Battery Built for Adventure -
IP68-Rating Dustproof and WaterproofEnjoy Without Worry
Get A Quote
PDF Download
Gallery not found.
Android 14
IP68
GPS
High-capacity
camera
Bluetooth
wifi
Fingerprint
5G
Features of EM-P2 Pro: 6.78 inch Rugged Outdoor Phone Android 14
Dimensity 6300 Flagship chipset Latest Android 14 OS
High-End 120Hz 2k Display Ultra-Clear Visual Experience
Outdoor Quad-Camera System
The First-Ever 20000mAh Beast Battery Built for Adventure
IP68-Rating Dustproof and WaterproofEnjoy Without Worry

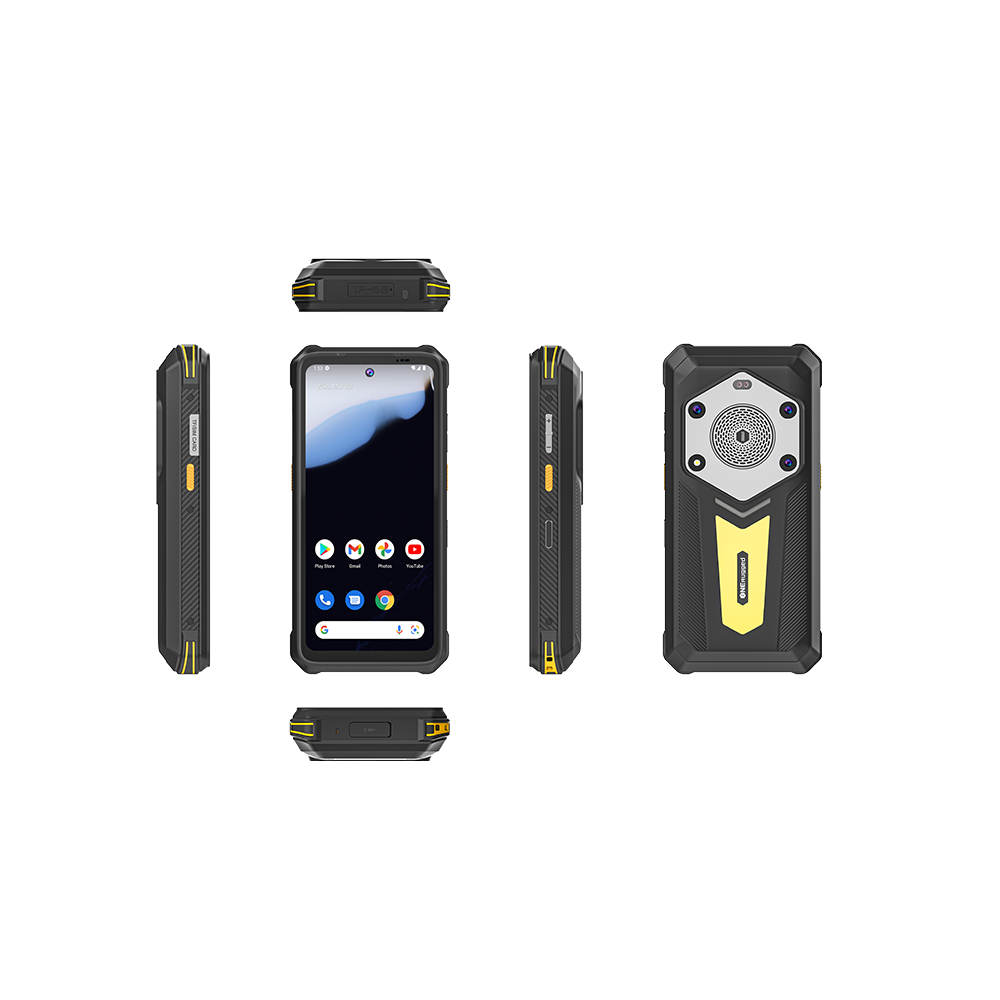

Six Views of EM-P2 Pro: 6.78 inch Rugged Outdoor Phone Android 14
Specification of EM-P2 Pro: 6.78 inch Rugged Outdoor Phone Android 14
| Rugged Outdoor Phone Tech Spec | |
| Product Form | Rugged Phone & PDA 2-in-1 |
| Dimension | 181.8*87.8*29.05mm |
| Weight | Approximately 600g |
| Product Color | Black+Orange |
| CPU | MT6835T (Also known as Dimensity 6300 or 24E) Octa-core, two cores of 2.4GHz + six cores of 2.0GHz 2*A76 2.2GHz 6*A55 2.0GHz |
| GPU | ARM Mali-G57 |
| Memory | RAM 8GB LPDDR4X ROM 256GB UFS2.2 |
| Operating System | Android 14/ GMS |
| Display | Type: TFT Size: 6.78 inch 20:9 Resolution: 1080*2460 Brightness: 520 Nits (Typical values) |
| Touch Pannel | Corning III Cover, 10-point capacitive screen, Hardness above 7H, Scratch-resistant. |
| Camera | Front Camera 32MP, Fixed Focus Rear Main Camera 48MP, Autofocus, Supports PDAF Rear Secondary Camera1 20MP Night Vision, Auto Focus Rear Secondary Camera2 2MP Macro |
| Flashlight | True Flash |
| Buttons | Power & Fingerprint *1 Volume + Key *1 Volume – Key *1 Custom button *2 |
| Indicator Light | Indicator light *1, R/G dual-color light: Red constant when charging, green constant when fully charged (above 90%), red flashing when low battery (0-15%), off when discharging. |
| Audio | Speaker*1 4Ω/3W Earphone*1 Dual-MIC Motor*1 Audio SMART PA |
| Sensor | Light Sensor Proximity Sensor 3D Accelerometer Geomagnetic Sensor Gyroscope Gravity Sensor Barometer |
| Battery | Built-in Polymer Lithium-ion Battery 3.87V/20000mAh Charging Power: 33W/PD 3.0 PPS Protocol Battery Life: TBD (The default volume is 70dB, Default 300 nits brightness; Playing 1080P HD video) Charging time: About 5.6hrs |
| WIFI | WIFI 802.11(a/b/g/n/ac) |
| Bluetooth | BT5.2 |
| 5G | GSM: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10 WCDMA: B1/2/4/5/6/8/19 TDD: B34/38/39/40/41 FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28AB/66/71 NR SA: N1/3/5/8/20/28/38/41/71/77/78/79 |
| GPS | Supports GPS/Beidou/Galileo/GLONASS/QZSS Supports AGPS Cold Start Time:<60 seconds |
| I/O Interfaces | Type C *1 (Charging/Data/Earphone/Reverse charging 10W) |
TF Card*1(MAX 2TB) SIM Card *2 | |
| 2 of 3 card slot (Micro Sim+TF or Micro Sim+Nano Sim) | |
| Power Adapter | 33W Fast Charge Adapter |
| Type-C Cable | Type-C Data Cable（1m） |
| Rugged Features | Drop Height: Withstands drops from 1.5 meters onto composite wood flooring, while powered on. |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Electrostatic Discharge: Contact Discharge ±8KV, Air Discharge ±12KV | |
| OVP: Threshold 13V | |
| EOS: VBUS: +/-450V VBAT: +/-450V | |
| Certifications | IP68 |
| CE | |
| CCC | |
| FCC | |
| MIL-STD-810H | |
| Data Collection | Fingerprint Power On/Off & Fingerprint 2-in-1 |
| Accessories | Lanyard (Standard) |
| 33W Fast Charge Adapter (Standard) | |
| 1m Type-C Cable (Standard) | |
| Tempered Glass Film (Optional) | |
*Product specifications, pictures, and other information are for reference only. The appearance is subject to the material object. This instruction is subject to change without notice.
Accessories of EM-P2 Pro: 6.78 inch Rugged Outdoor Phone Android 14
Application Range of EM-P2 Pro: 6.78 inch Rugged Outdoor Phone Android 14
Various modules and accessories can be selected to meet customers’ application in various industries
